DDC REGULAR 2025

Valor in The Air | DDC Regular 2025

AIRCRAFT SPECIFICATIONS

Airframe

  • LENGTH2.8 M
  • WING AREA1.8 M²
  • EMPTY WEIGHT3.5 KG
  • MTOW12 KG
  • MATERIALBALSA + CARBON FIBER

Propulsion

  • MOTORBRUSHLESS OUTRUNNER
  • KV RATING580 KV
  • PROPELLER18x10 APC
  • ESC100A OPTO
  • BATTERY6S 5000mAh LiPo

Performance

  • CRUISE SPEED18 M/S
  • MAX SPEED28 M/S
  • STALL SPEED8 M/S
  • MAX THRUST55 N
  • ENDURANCE25 MIN

DESIGN  PROCESS

Our Methodology

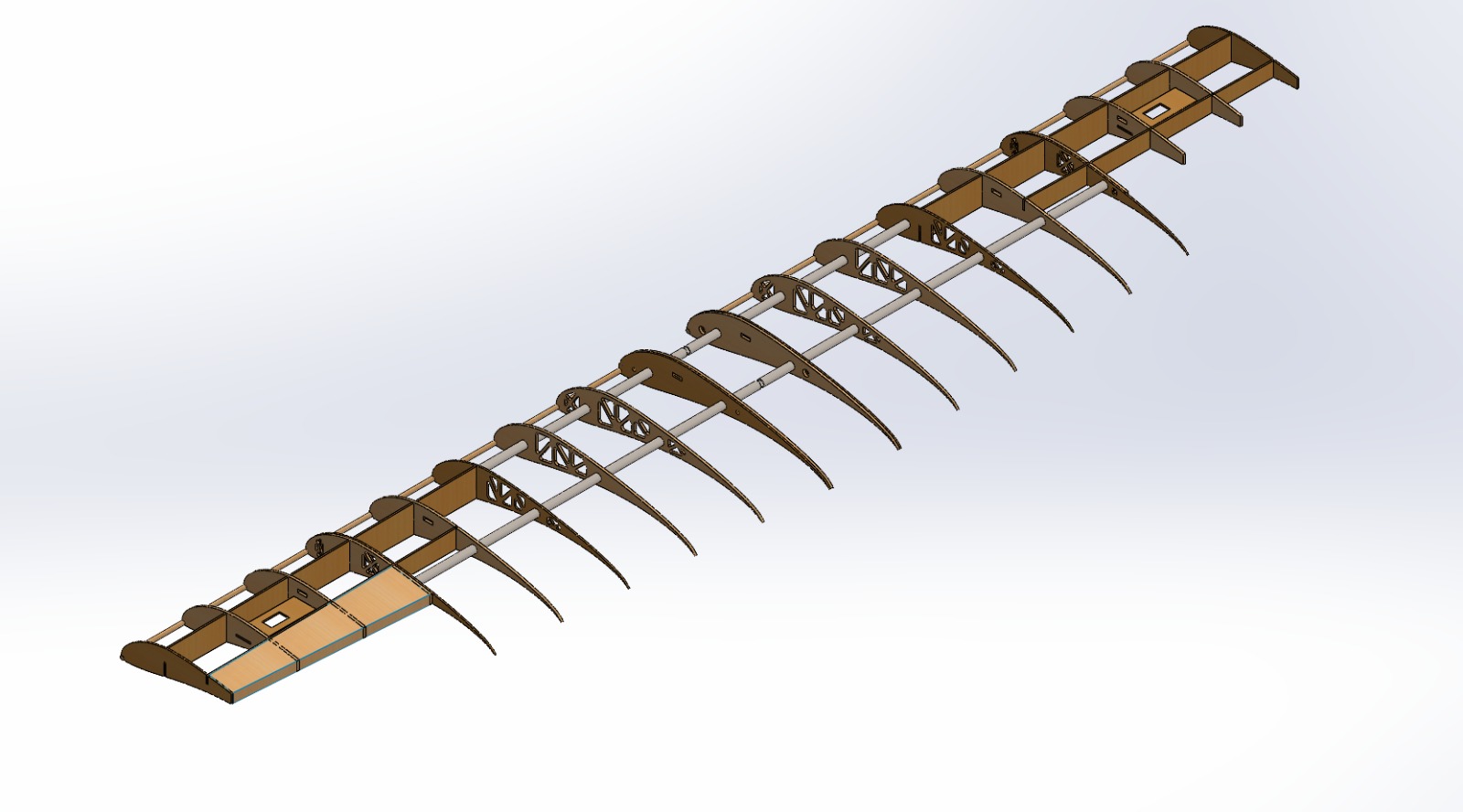

The DDC Regular 2025 mission focused on optimizing the Lift-to-Drag ratio for heavy payload operations. Our team implemented high-precision laser-cut components and custom carbon-fiber spans to ensure structural integrity at max takeoff weight.

Iterative flight testing and computational fluid dynamics (CFD) simulations were key to achieving the stable flight performance exhibited during the competition.

COMPETITION  TEAM

Dharmik Jha
Dharmik
TEAM CAPTAIN
Soumil Singh
Soumil
PILOT
Vanshi Raithata
Vanshi
ANALYSIS LEAD
Aditya Trivedi
Aditya
MANUFACTURING LEAD
Ninad Nair
Ninad
JUNIOR ENGINEER
Bhautika Mavani
Bhautika
JUNIOR ENGINEER
Maria Lakdawala
Maria
JUNIOR ENGINEER
Vedant Shyal
Vedant
JUNIOR ENGINEER
Hemang
Hemang
JUNIOR ENGINEER
Kashish Patel
Kashish
JUNIOR ENGINEER
Nikunj
Nikunj
JUNIOR ENGINEER

GALLERY
